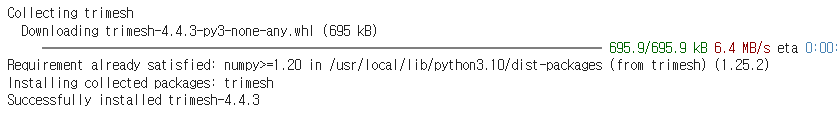

!pip install trimesh

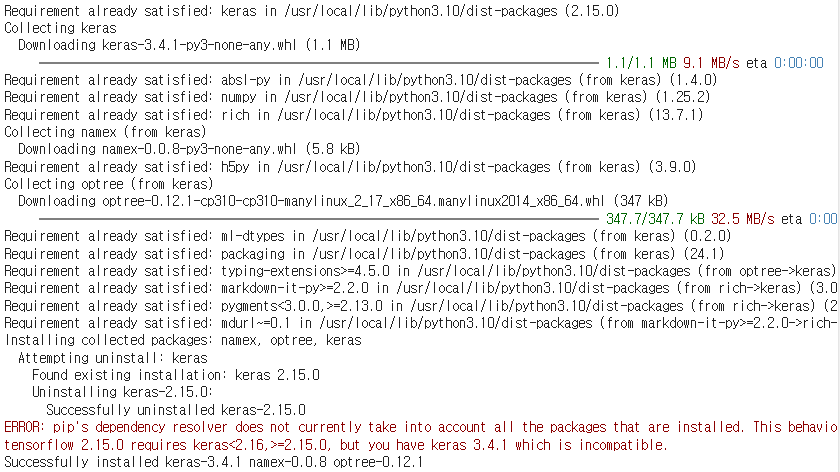

!pip install --upgrade keras

import os
import glob
import trimesh
import numpy as np
import keras

from tensorflow import data as tf_data
from keras import ops
from keras import layers
from matplotlib import pyplot as plt

keras.utils.set_random_seed(seed=42)



DATA_DIR = keras.utils.get_file(
    "modelnet.zip",
    "http://3dvision.princeton.edu/projects/2014/3DShapeNets/ModelNet10.zip",
    extract=True,
)

DATA_DIR = os.path.join(os.path.dirname(DATA_DIR), "ModelNet10")



mesh = trimesh.load(os.path.join(DATA_DIR, "chair/train/chair_0001.off"))

mesh.show()

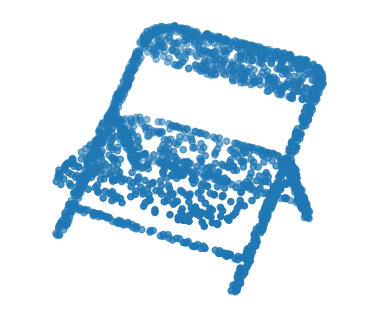

points = mesh.sample(2048)

fig = plt.figure(figsize=(5,5))
ax = fig.add_subplot(111, projection="3d")
ax.scatter(points[:, 0], points[:, 1], points[:, 2])
ax.set_axis_off()
plt.show()

def parse_dataset(num_points=2048):
    train_points = []
    train_labels = []
    test_points = []
    test_labels = []
    class_map = {}
    folders = glob.glob(os.path.join(DATA_DIR, "[!README]*"))

    for i, folder in enumerate(folders):
        print("processing class: {}".format(os.path.basename(folder)))
        # store folder name with ID so we can retrieve later
        class_map[i] = folder.split("/")[-1]
        # gather all files
        train_files = glob.glob(os.path.join(folder, "train/*"))
        test_files = glob.glob(os.path.join(folder, "test/*"))

        for f in train_files:
            train_points.append(trimesh.load(f).sample(num_points))
            train_labels.append(i)

        for f in test_files:
            test_points.append(trimesh.load(f).sample(num_points))
            test_labels.append(i)

    return (
        np.array(train_points),
        np.array(test_points),
        np.array(train_labels),
        np.array(test_labels),
        class_map,
    )

NUM_POINTS = 2048
NUM_CLASSES = 10
BATCH_SIZE = 32

train_points, test_points, train_labels, test_labels, CLASS_MAP = parse_dataset(
    NUM_POINTS
)

def augment(points, label) :

    # gitter points
    points += keras.random.uniform(points.shape, -0.005, 0.005, dtype="float64")

    # shuffle points
    points = keras.random.shuffle(points)

    return points, label

train_size = 0.8
dataset = tf_data.Dataset.from_tensor_slices((train_points, train_labels))
test_dataset = tf_data.Dataset.from_tensor_slices((test_points, test_labels))
train_dataset_size = int(len(dataset) * train_size)

dataset = dataset.shuffle(len(train_points)).map(augment)
test_dataset = test_dataset.shuffle(len(test_points)).batch(BATCH_SIZE)

train_dataset = dataset.take(train_dataset_size).batch(BATCH_SIZE)
validation_dataset = dataset.skip(train_dataset_size).batch(BATCH_SIZE)

def conv_bn(x, filters):
    x = layers.Conv1D(filters, kernel_size=1, padding="valid")(x)
    x = layers.BatchNormalization(momentum=0.0)(x)
    return layers.Activation("relu")(x)


def dense_bn(x, filters):
    x = layers.Dense(filters)(x)
    x = layers.BatchNormalization(momentum=0.0)(x)
    return layers.Activation("relu")(x)

class OrthogonalRegularizer(keras.regularizers.Regularizer):
    def __init__(self, num_features, l2reg=0.001):
        self.num_features = num_features
        self.l2reg = l2reg
        self.eye = ops.eye(num_features)

    def __call__(self, x):
        x = ops.reshape(x, (-1, self.num_features, self.num_features))
        xxt = ops.tensordot(x, x, axes=(2, 2))
        xxt = ops.reshape(xxt, (-1, self.num_features, self.num_features))
        return ops.sum(self.l2reg * ops.square(xxt - self.eye))

def tnet(inputs, num_features):
    # Initalise bias as the indentity matrix
    bias = keras.initializers.Constant(np.eye(num_features).flatten())
    reg = OrthogonalRegularizer(num_features)

    x = conv_bn(inputs, 32)
    x = conv_bn(x, 64)
    x = conv_bn(x, 512)
    x = layers.GlobalMaxPooling1D()(x)
    x = dense_bn(x, 256)
    x = dense_bn(x, 128)
    x = layers.Dense(
        num_features * num_features,
        kernel_initializer="zeros",
        bias_initializer=bias,
        activity_regularizer=reg,
    )(x)
    feat_T = layers.Reshape((num_features, num_features))(x)
    # Apply affine transformation to input features
    return layers.Dot(axes=(2, 1))([inputs, feat_T])

inputs = keras.Input(shape=(NUM_POINTS, 3))

x = tnet(inputs, 3)

x = conv_bn(x, 32)
x = conv_bn(x, 32)

x = tnet(x, 32)

x = conv_bn(x, 32)
x = conv_bn(x, 64)
x = conv_bn(x, 512)

x = layers.GlobalMaxPooling1D()(x)

x = dense_bn(x, 256)

x = layers.Dropout(0.3)(x)

x = dense_bn(x, 128)

x = layers.Dropout(0.3)(x)

outputs = layers.Dense(NUM_CLASSES, activation="softmax")(x)

model = keras.Model(inputs=inputs, outputs=outputs, name="pointnet")

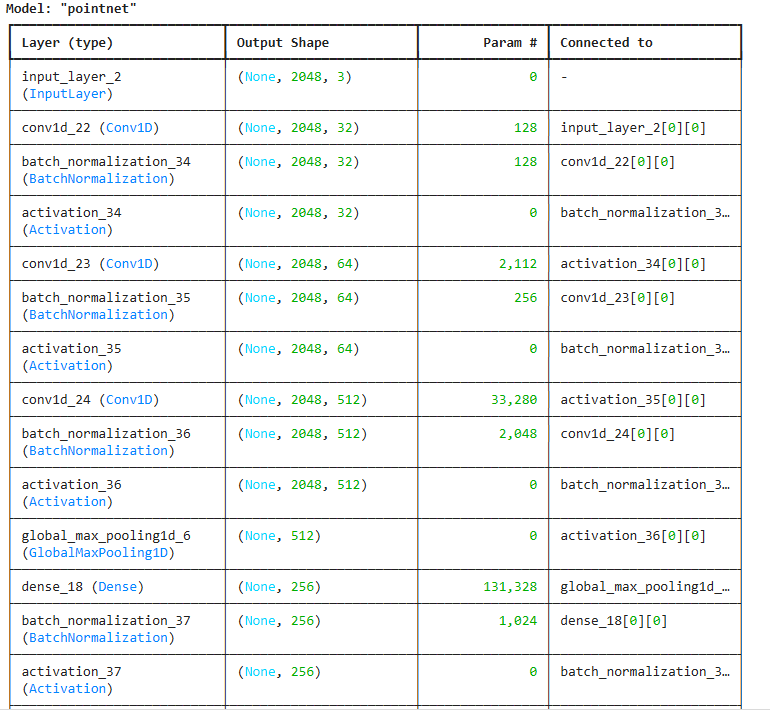

model.summary()

model.compile(
    loss="sparse_categorical_crossentropy",
    optimizer=keras.optimizers.Adam(learning_rate=0.001),
    metrics=["sparse_categorical_accuracy"],
)

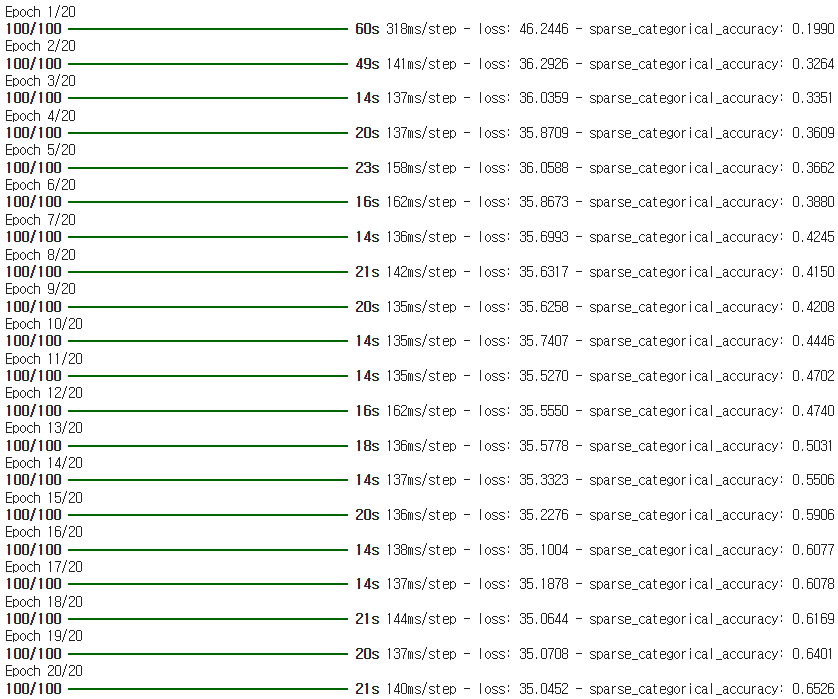

model.fit(train_dataset, epochs=20, validation_data=validation_dataset)

data = test_dataset.take(1)

points, labels = list(data)[0]
points = points[:8, ...]
labels = labels[:8, ...]

# run test data through model
preds = model.predict(points)
preds = ops.argmax(preds, -1)

points = points.numpy()

# plot points with predicted class and label
fig = plt.figure(figsize=(15, 10))
for i in range(8):
    ax = fig.add_subplot(2, 4, i + 1, projection="3d")
    ax.scatter(points[i, :, 0], points[i, :, 1], points[i, :, 2])
    ax.set_title(
        "pred: {:}, label: {:}".format(
            CLASS_MAP[preds[i].numpy()], CLASS_MAP[labels.numpy()[i]]
        )
    )
    ax.set_axis_off()
plt.show()

ls

cd catkin_ws

cd src

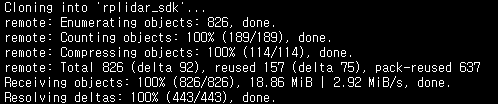

git clone https://github.com/Slamtec/rplidar_sdk

cd rplidar_sdk/sdk/

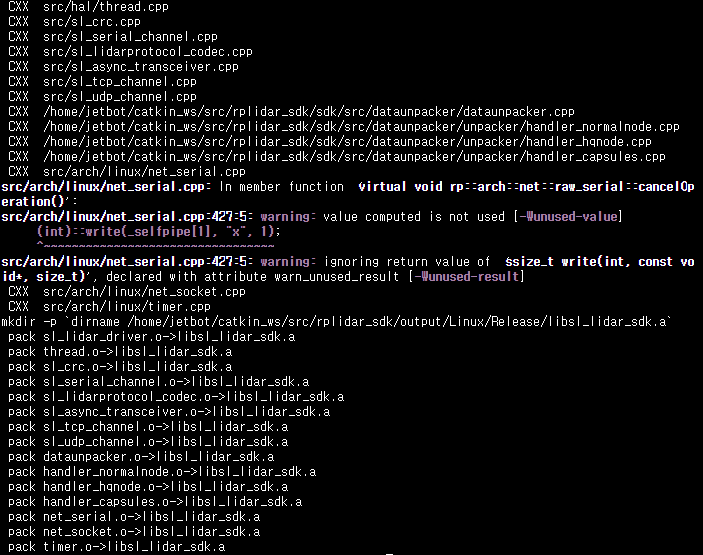

make

sudo chmod 666 /dev/ttyUSB0

ls -l /dev | grep ttyUSB

ls

cd src/

ls

cd ..

ls

cd output/

ls

cd ..

cd output/Linux/Release/

ls
